What is SNMP

Stands for Simple Network Management Protocol. It’s used to monitor and modify device settings through the network. It was originally designed for routers and switches, but has since been expanded to servers, printers, etc. An SNMP network comprises of three components

There are two ways that devices communicate via SNMP, polling and traps. Polling involves the NMS making requests to agents to configure or read the status of devices, while traps are notifications sent from an agent w/o any prior request. This article will mainly go over SNMP traps.

SNMP uses OID’s (Object Identifiers) to specify what/which systems and configurations the SNMP request is giving the status on.

OID

OID’s are usually structured as a string of numbers - similar to an IP format. Example OID’s

MIB

MIB stands for Management Information Base, and is a text file that provides a human readable string that associates with an OID. It’s role is similar to host names - to make it easier to read what the SNMP request is altering. Usually SNMP managers will contain software to help translate OID’s to MIB’s (or vice versa), as well as installing pre-configured MIB files within a directory. It’s common to have companies specifying a directory with multiple MIB’s that pertain to their infrastructure devices or SAAS products.

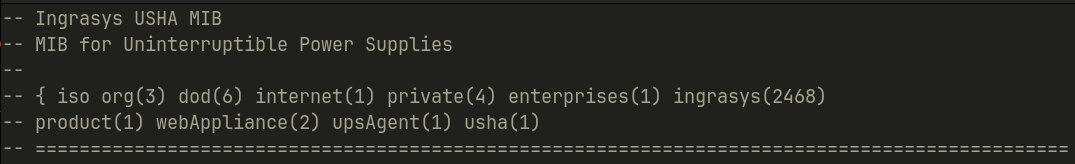

For example we can look at Ingrasys, a Taiwanese company that specializes in AI rack solutions and datacenters, has a MIB file for two different products.

We can see that the corresponding OID’s are

Additionally we can see that the prefix 3.6.1.4.1 specifies a private enterprise device for the internet. 2468 is the identifier for Ingrasys. The next subfix are product specifications created by the company through the MIB file.

We can also use the snmptranslate command to help parse MIB files to find the OID’s.

Within the MIB files, we can see each number in the OID corresponds to a certain identifier, or segment. iso(1) identified-organization(3) dod(6) internet(1) snmpV2(6) snmpModules(3) snmpAlarmNextIndex(1) snmpMIBObjects(1) snmpTraps(5)

SNMPTRAP command

The snmptrap command sends an notification to the NMS. It is an un-requested message that an agent sends to inform the manager about critical events (outages, downstate,enterprise alerts).

There are two types of traps, generic traps and enterprise-specific traps (in other words custom made).

Generic Traps

We can pull from RFC-1215 a list of generic traps to use with SNMP. These are universally supported OID’s that are supported through SNMP’s protocol.

          coldStart TRAP-TYPE
              ENTERPRISE  snmp
              DESCRIPTION
                          "A coldStart trap signifies that the sending
                          protocol entity is reinitializing itself such
                          that the agent's configuration or the protocol
                          entity implementation may be altered."
              ::= 0

          warmStart TRAP-TYPE
              ENTERPRISE  snmp
              DESCRIPTION
                          "A warmStart trap signifies that the sending
                          protocol entity is reinitializing itself such
                          that neither the agent configuration nor the
                          protocol entity implementation is altered."
              ::= 1

          linkDown TRAP-TYPE
              ENTERPRISE  snmp
              VARIABLES   { ifIndex }
              DESCRIPTION
                          "A linkDown trap signifies that the sending
                          protocol entity recognizes a failure in one of
                          the communication links represented in the
                          agent's configuration."
              ::= 2

          linkUp TRAP-TYPE
              ENTERPRISE  snmp
              VARIABLES   { ifIndex }
              DESCRIPTION
                          "A linkUp trap signifies that the sending
                          protocol entity recognizes that one of the
                          communication links represented in the agent's
                          configuration has come up."
              ::= 3

          authenticationFailure TRAP-TYPE
              ENTERPRISE  snmp
              DESCRIPTION
                          "An authenticationFailure trap signifies that
                          the sending protocol entity is the addressee
                          of a protocol message that is not properly
                          authenticated.  While implementations of the
                          SNMP must be capable of generating this trap,
                          they must also be capable of suppressing the
                          emission of such traps via an implementation-
                          specific mechanism."
              ::= 4

          egpNeighborLoss TRAP-TYPE
              ENTERPRISE  snmp
              VARIABLES   { egpNeighAddr }
              DESCRIPTION
                          "An egpNeighborLoss trap signifies that an EGP
                          neighbor for whom the sending protocol entity
                          was an EGP peer has been marked down and the
                          peer relationship no longer obtains."
              ::= 5

You can also find these within your .mib directories of your SNMP manager. I’m using librenms, so they’re found in /opt/librenms/mibs/SNMPv2-MIB.

We can also lookup the generic traps OID, and see that the ::=1 line corresponds to the last number (snmpTraps) type.

SNMP Trap Caveats

SNMP traps are un-requested messages sent by agents to notify the manager about critical events. However these messages are unacknowledged - they are sent over UDP. In theory they are unreliable because messages could be lost. However due to the nature of critical events - this is ok - because the device might not be able to wait for an acknowledgement (application or transport).

It is possible to have SNMP traps to be sent over (TCP)[http://www.faqs.org/rfcs/rfc3430.html], but one must think carefully if it’s needed. TCP will only provide delivery guarantees for layer 3, and comes at a cost of latency and retransmissions. The agent and server have to wait for an acknowledgement from each other. The better guarantee is using SNMP informs.

snmptrap command structure

You’ll need to install snmp and snmptrapd in order to use the snmptrap command.

Before getting to the NMS configuration we’ll go over the snmptrap command structure.

snmptrap -v <snmp_version> -c <community> <destination_host> <uptime> <OID_or_MIB> <object> <value_type> <value>

Example: snmptrap -v 2c -c public localhost '' 1.3.6.1.6.3.1.1.5 1.3.6.1.6.3.1.1.5.1 s "This is a generic trap about the cold start"

Let’s break this command down:

SNMP Inform

The issue with TRAP’s is that they are inherently unreliable. An extra step is an application (SNMP) acknowledgement - an snmpinform PDU. snmpinform is just an acknowledged snmptrap, when the manager receives an inform it will respond with a message acknowledging the trap.

With these two inform requests, one with an invalid community string, we can open up Wireshark to see what’s going on in the background.

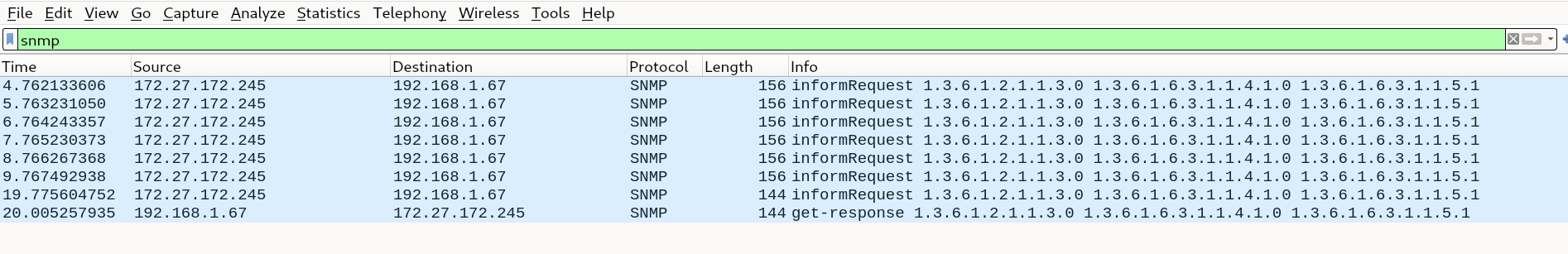

We can see in this picture that the SNMP protocol was acknowledged with a SNMP get-reponse. The failed SNMP inform request was retried at a 1 second interval.

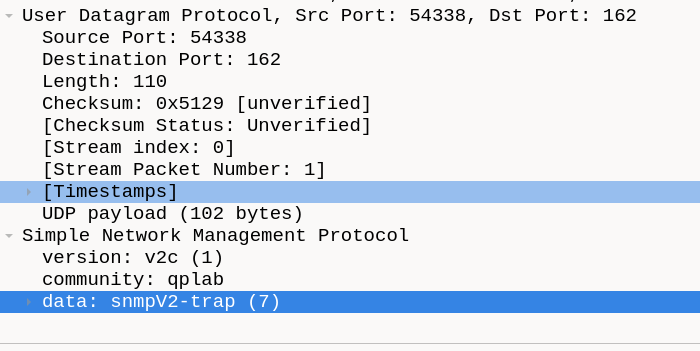

It’s also worth noting that our community string is not encrypted.

Usually SNMP is implemented within a company subnet, but if it needs to span into the public domain, or cross platforms - it will be insecure because packet data can be sniffed and saved. Additionally bad actors can use inform to see if a particular community strong gets through.

Securing SNMP Trap

SNMP versions 1 and 2c use a community string for authentication. However they are vulnerable because they are sent with clear text. This is troublesome because anyone snooping on the network will be able to find out what the community string is. It’s important to use a strong community string and also alter read-write controls for certain community strings. If possible use read-only access for community strings.

snmptrapd

This is an SNMP server for listening to TRAP and INFORM messages from agents. It listens on port 162. Documentation for altering the configuration can be found (here)[https://www.net-snmp.org/docs/man/snmptrapd.conf.html].

It is imperative when using 1 and 2c that access control is set up on the server.

authCommunity is a setting that authorizes traps and informs to trigger the types of processing listed, and only work on the specified community strings. Additionally you can further restrict it to certain OID’s.

SNMP v3

SNMP version 3 comes with a whole slew of security improvements. It gets rid of the community string, and instead opts for a username and password authentication protocol - making away with the unencrypted community password. SNMP v3 allows the SNMP Trap server to also set access controls to users.

To enable SNMPv3, in /etc/snmp/snmptrapd.conf you’ll have create a user.

Configure SNMPv3 User

createUser -e ENGINEID username (MD5|SHA) authpassphrase [DES|AES]

authUser TYPES [-s MODEL] USER [LEVEL [OID | -v VIEW ]] This provides what type of processing the trap daemon will do when it receives the trap notification.

Example Configuration:

createUser -e 0x80001F88C0A880 labUserTrap SHA mavlabpass123 AES mavlabpass123
authUser log,execute,net labUserTrap authPriv

Using the snmptrap command, we can create a request to the trapd server.

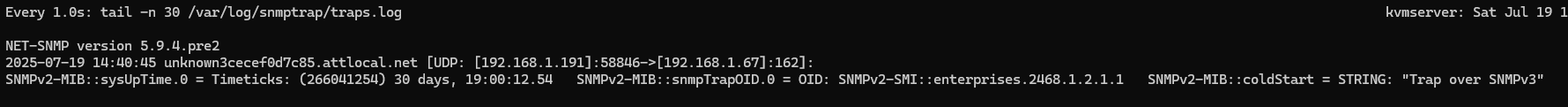

snmptrap -v 3 -n "" -a SHA -A mavlabpass123 -x AES -X mavlabpass123 -l authPriv -u labUserTrap -e 0x80001F88C0A880 192.168.1.67 '' 1.3.6.1.4.1.2468.1.2.1.1 1.3.6.1.6.3.1.1.5.1 s "Trap over SNMPv3

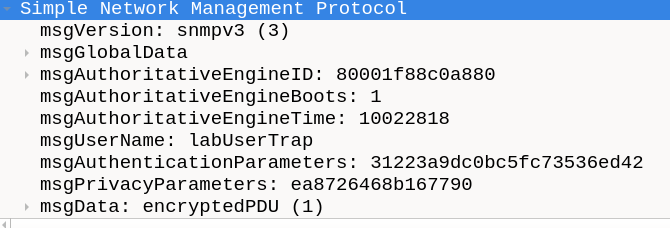

The username and password is not leaked
